Manual Scanmarker USB-ENG

Get Started

Buttons & Connectors:

1. Access Scanmarker

Windows, Mac, Chromebook

Open Chrome browser
Type address app.scanmarker.com

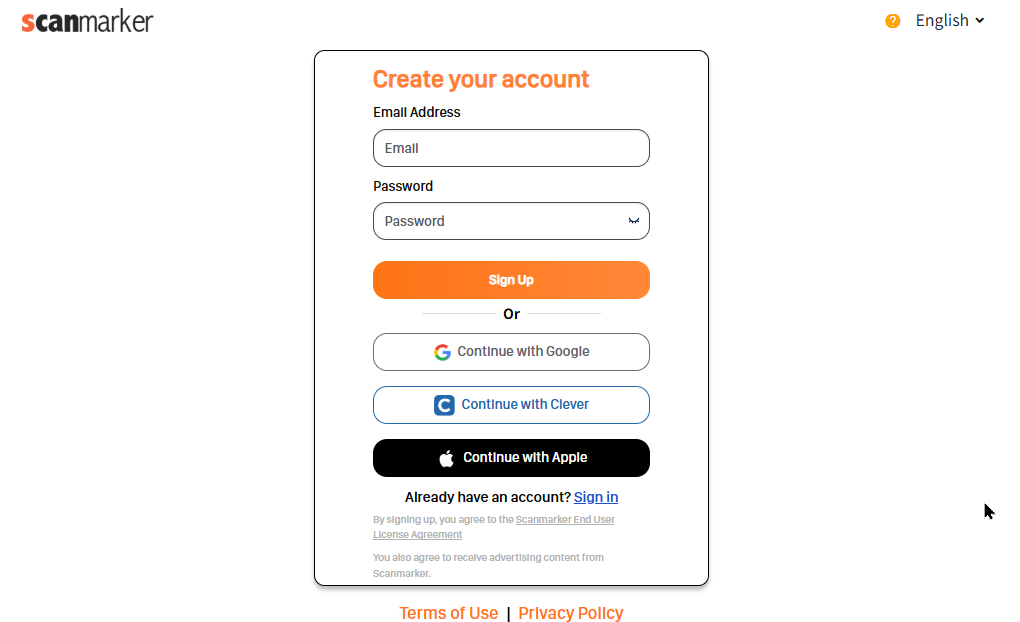

2. Register

Create an account and verify your email address.

3. Log in

Log in to your new account.

4. Connect Your Scanner

Connect Via USB Cable -

• Plug in your scanner using the USB cable
  provided.
• Select ‘Pen Scanner 2.0’ from the pop-up
  window that appears and click ‘Connect’.

5. Settings

Choose your settings (right/left-handed, scanning language) and watch the app tutorial.

6. Start Scanning!

Enjoy.

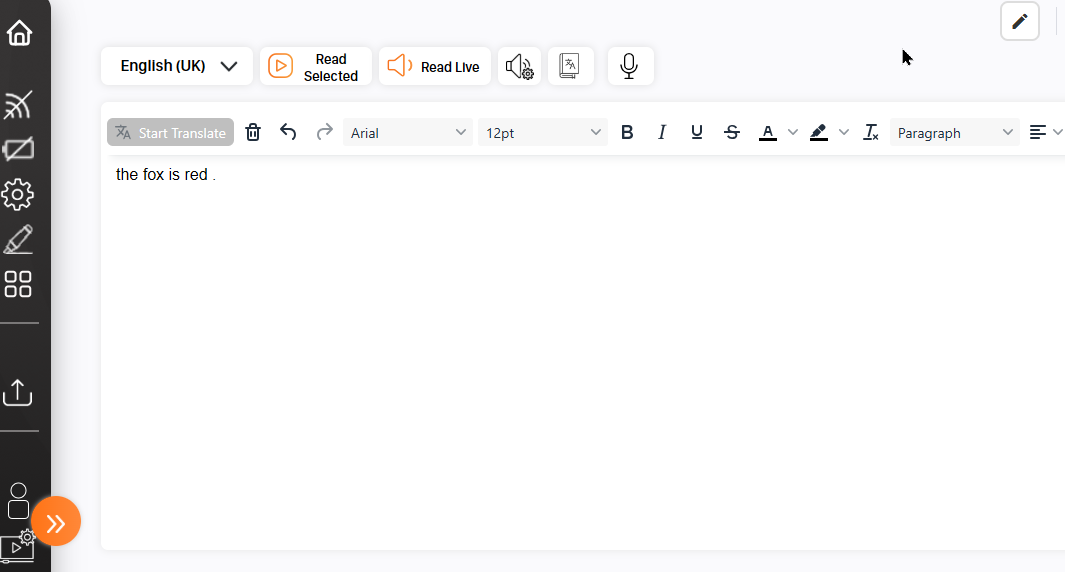

Main App Features

Read Live:

Hear the text read aloud while scanning.

Read Selected:

Listen to a selected text.

Translate:

Translate to another language: 140 available.

Export Text:

In order to save your scanned or translated text, you can export it as a PDF, Word file, JPEG or MP3 file.

Share Text:

Share scanned text, translation or both to email, Google Drive or Facebook.

Upload Text:

Upload texts from different doc formats: .doc, .pdf, .txt and .jpeg.

You can minimize here whilst scanning to document.

Select here for advanced settings - e.g. to change right/left - handed options, change read aloud speed, test your Scanmarker, help & support.

Scan Directly Into An External Application (For Windows & Mac Computers) Scan directly into an external application such as Word, Evernote, email or any place it has an editor. You will need to install a local application on your computer to use this feature.

Installation

• Click on the ‘Scan to External’ button inside the web app and follow the prompts to download the relevant file.
• Open the downloaded file and follow the installation instructions.

After installation is complete, the Scanmarker icon will appear on your desktop.

Connect & Scan

• Open the Scanmarker application and press ‘Connect’ to pair your scanner.
• Place your cursor where you would like the scan to appear, and start scanning!

To change the scanning language and other settings, click on the settings button.

Hardware Specifications

• Scanning speed: 10 cm/sec
• Recongnition speed: 3000 characters per minute. Full line of text within on second.
• Scanned width (field of view): 1 cm (0.4 inch).
• Characters size: 6-24 pt
• Optical resolution 350 dpi

OS Support

All devices require

• Windows 7 or higher
• Mac OS X 10.10 or higher
• Chromebook

What’s In The Box

• Pen Scanner
• Quick Guide
• USB Cable

Scanning Tips

• Hold your scanner at a 30-60 degree angle.
• Place the clear tip of the scanner a little bit before the beginning of the line.
• Make sure the text is in the center of the tips when you start scanning.
• Scan in a fluid and quite quick motion.
• Avoid applying excessive pressure whilst scanning.
• For better results, we recommend using the ruler provided.

Hello, there!

This guide serves as a starting point and may only cover some features or settings, as they may change with firmware upgrades. For the most up-to-date information, please visit our website or contact us at
[e-mail]

COMMENCEZ A UTILISER VOTRE
SCAMARKER AIR:

ERSTE SCHRITTE MIT IHREM
SCAMARKER AIR:

ISTRUZIONI PER INIZIARE AD USARE
SCAMARKER AIR:

EMPEZAR A TRABAJAR CON
SCAMARKER AIR:

Thank you for your support!
Reuven Regev, Founder
Scanmarker.com
