Manual Scanmarker Air-ENG

Get Started

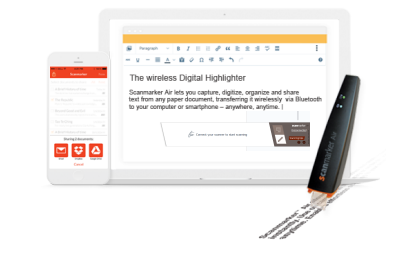

Congratulations on choosing the Scanmarker Air for assistance while reading or language learning. This manual provides guidance on effectively utilizing the pen for text scanning and reading, along with instructions on leveraging its myriad functions and features.

Download the short printed manual here

Buttons & Connectors

Start Scanning Text & Reading Live

It is recommended to charge your scanner for 2 hours or until the green light stops blinking before first-time use.

1. Access Scanmarker software

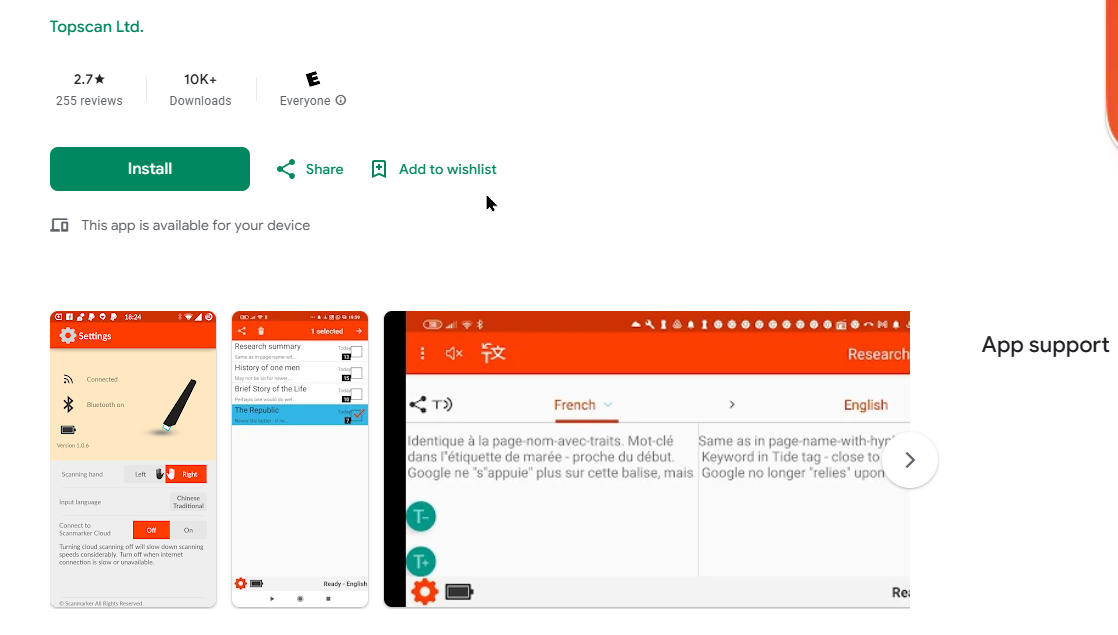

ON Windows, Mac, Chromebook & Android mobile

  on a chrome browser

Open Chrome browser
Type address app.scanmarker.com

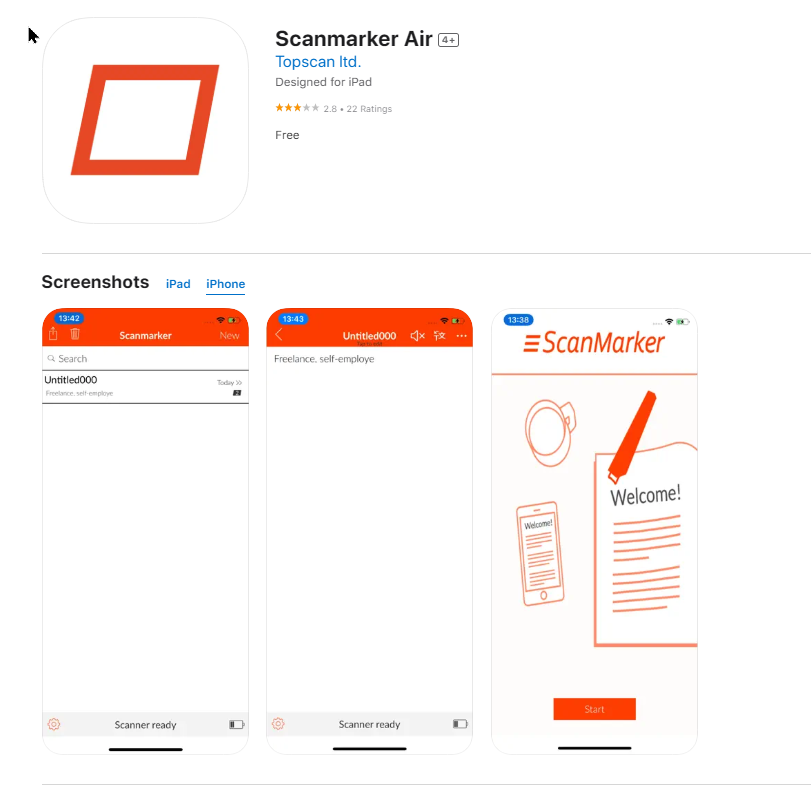

iOS
Download ‘Scanmarker’ app from the App Store

--------------------------------------------------------------------------------------

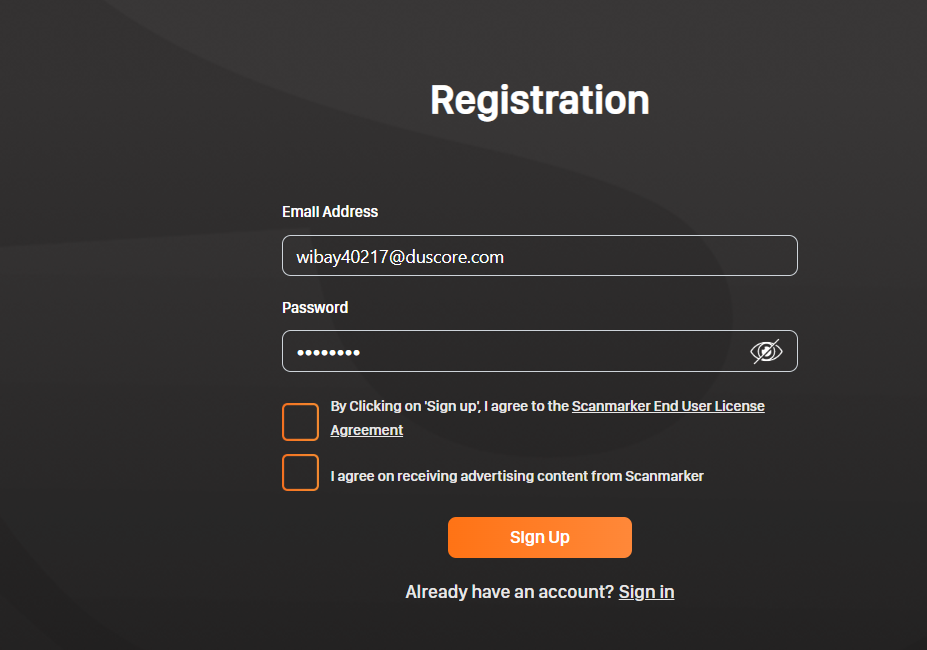

2. Register you account by email and password

Create an account and verify your email address.

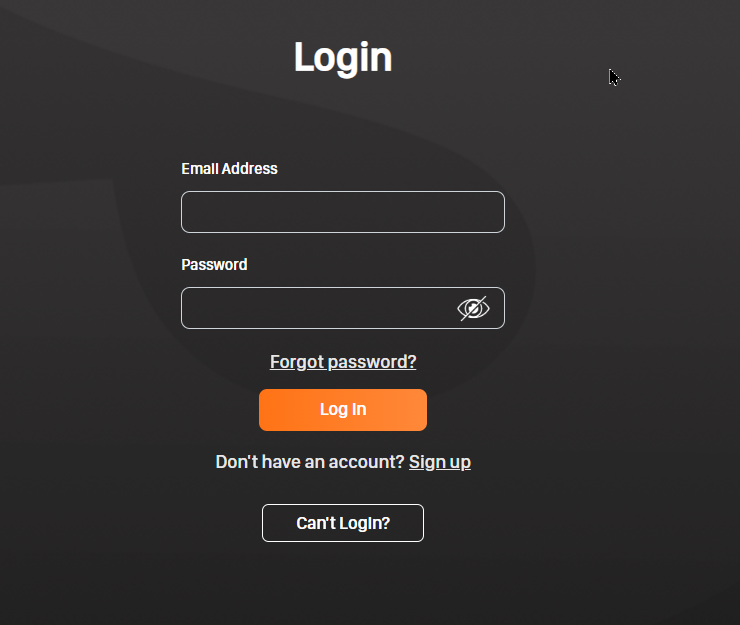

3. Log In

Log in to your new account.

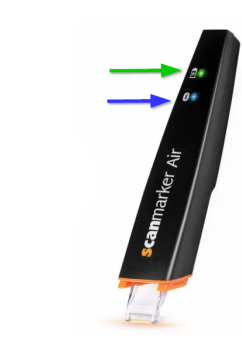

4. Turning Your Scanner On & Off (Bluetooth Mode).

To turn on:
Click the tip down against a surface for three seconds until the lights turn on. The green light is the battery indication and will blink when charging is required. The blue light is the Bluetooth indication and turns steady when it has connected successfully.

To turn off:
Press the tip down 3 times. The scanner automatically turns off after 12 minutes of inactivity.

5. Connect Your Scanner

Bluetooth

• Turn on your Scanmarker Air.
  • A pop-up window will appear showing the available scanners.
  Click on your scanner name and
  then click 'Pair' to connect your
  scanner.
  • Plug in your scanner using the USB cable provided.
  • Select ‘Pen Scanner 2.0’ from the pop-up window that appears and click ‘Connect’.
  Or connect via USB cable –
  • Plug in your scanner using the
  USB cable provided.
  • Select ‘Pen Scanner 2.0’ from
  the pop-up window that appears
  and click ‘Connect’.

6. Settings

Choose your settings (right/left-handed,
scanning language) and watch the
app tutorial.

7. Start Scanning!

Enjoy.

Main App Features:

Read Live:

Hear the text read aloud while scanning.

Read Selected:

Listen to a selected text.

Translate:

Translate to another language: 140 available.

Export Text:

In order to save your scanned or translated text, you can export it as a PDF, Word file, JPEG or MP3 file.

Share Text:

Share scanned text, translation or both to email, Google Drive or Facebook.

Upload Text:

Upload texts from different doc formats: .doc, .pdf, .txt and .jpeg.

Scan Directly Into An External Application (For Windows & Mac Computers) Scan directly into an external application such as Word, Evernote, email or any place it has an editor. You will need to install a local application on your computer to use this feature.

Installation

• Click on the ‘Scan to External’ button inside the web app and follow the prompts to download the relevant file.
• Open the downloaded file and follow the installation instructions.

After installation is complete, the Scanmarker icon will appear on your desktop.

Connect & Scan

• Open the Scanmarker application and press ‘Connect’ to pair your scanner.
• Place your cursor where you would like the scan to appear, and start scanning!

To change the scanning language and other settings, click on the settings button.

Settings Screen

You can minimize here whilst scanning to document.

Select here for advanced settings - e.g. to change right/left - handed options, change read aloud speed, test your Scanmarker, help & support.

Hardware Specifications

• Interface: USB 2.0 / BLE (Bluetooth 4.0)
• Transmission distance: 1 meter
• Battery: 100 mAh, Built-in lithium polymer rechargeable via USB
• Scanning speed: 10 cm/sec
• Recongnition speed: 3000 characters per minute. Full line of text within on second.
• Scanned width (field of view): 1 cm (0.4 inch)
• Characters size: 6-24 pt
• Optical resolution 350 dpi

OS Support

All devices require

• Bluetooth 4.0

• Windows 7 or higher
• Mac OS X 10.10 or higher

• Android 5 or higher
• Chromebook
• iOS 8 or higher
• iPhone 4S/iPad 3 or higher

What’s In The Box

• Pen Scanner
• Quick Guide
• USB Cable
• BLE Dongle

Scanning Tips

• Hold your scanner at a 30-60 degree angle.
• Place the clear tip of the scanner a little bit before the beginning of the line.
• Make sure the text is in the center of the tips when you start scanning.
• Scan in a fluid and quite quick motion.
• Avoid applying excessive pressure whilst scanning.

• For better results, we recommend using the ruler provided.

How to scan with the left hand: video link

How to scan to an external file : How do I scan to Word or other documents with Scanmarker Air on webapp?

Hello, there!

This guide serves as a starting point and may only cover some features or settings, as they may change with firmware upgrades. For the most up-to-date information, please visit our website or contact us at
[e-mail]
